Array v4 spectral sequencer – AU/VST3/AAX

BUY NOW $29 ... DEMO VERSION ... USER MANUAL

Array is a spectral sequencer effect plugin for Mac, Windows and Linux. Using multiple crossover filters, it splits audio into 8 frequency bands that are separated exactly one octave apart. Each band then runs through a gate controlled by an advanced step sequencer – allowing you to carve the audio spectrum in precise rhythmical fashion. The crossover filters themselves have a clean, neutral character and do not color the sound in any way – however, Array also features 8 band-pass filters (one for each band) with variable resonance and slope, and those can be enabled for more radical spectral effects – even up to vocoder-like morphing. Additionally, the spread function can gradually pan the frequency bands across the stereo field.

The sequencer holds a total of 8 different gate patterns with up to 32 steps each, and offers a very wide range of timing settings for creating polymetric or polyrhythmic motion in any time signature. The gate switches on every frequency band are shaped using a two-pole low-pass filter for natural yet snappy transitions. Combined with the unique design of the filter section, this sophisticated timing engine makes Array an extremely versatile instrument for complex rhythmical manipulation of the sound spectrum – going anywhere from surgical precision to filtering beyond recognition.

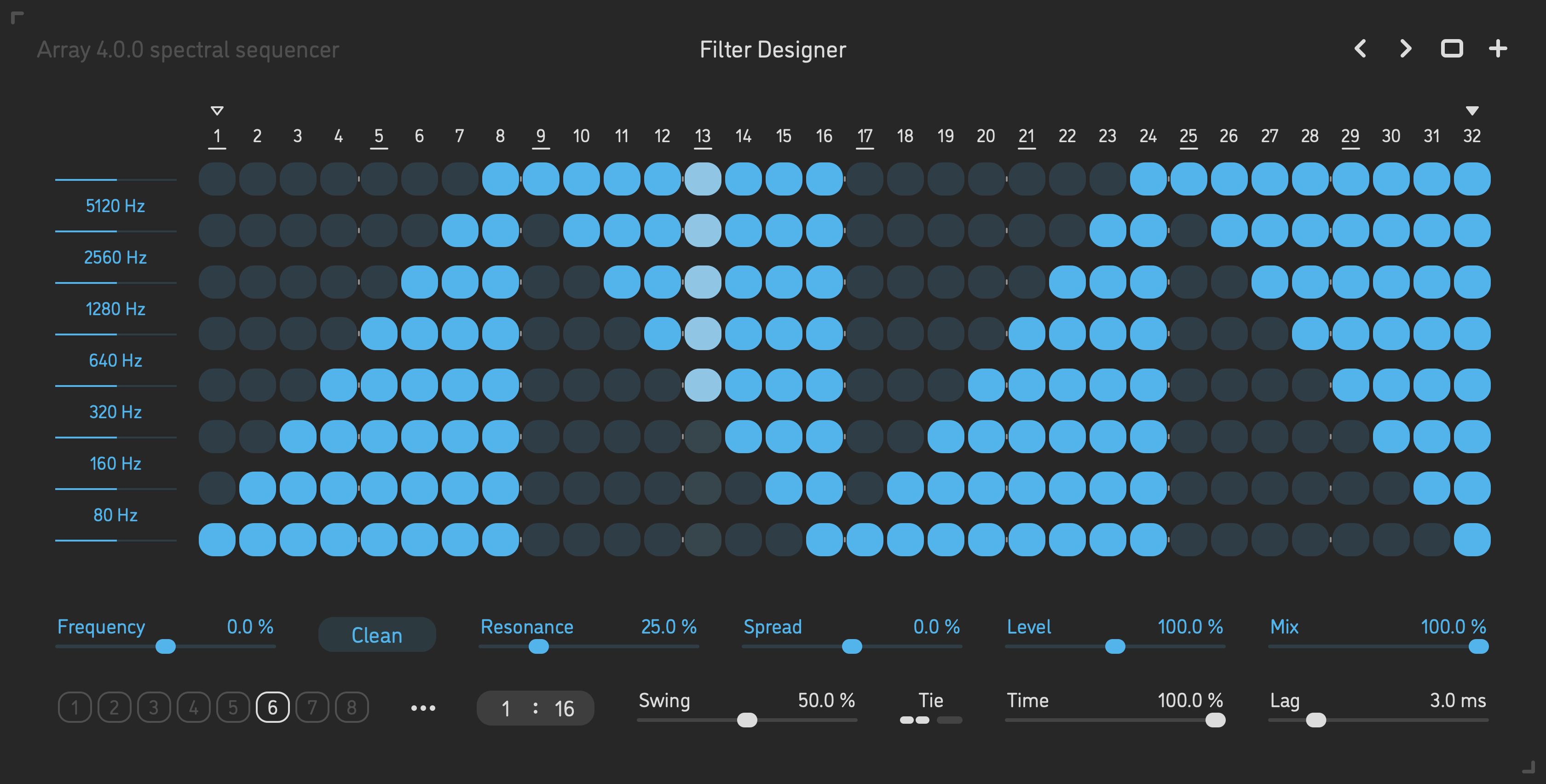

imageDownload high-resolution screenshot: SinevibesArray-v4.png

SOUND ENGINE

  • Clean, neutral -24 dB/octave crossover filters that split audio into 8 frequency bands, tuned one octave apart
  • Optional state-variable, resonant band-pass filters per each frequency band, tuned one octave apart, with adjustable slope
  • Individual gate sequence per frequency band, with 8 separate sequence patterns per preset
  • Step sequencer with rhythmically correct swing, polymetric and polyrhythmic abilities
  • Two-pole analog-style lag filters for variable gate transition smoothing
  • Progressive bipolar pan spread between the frequency bands
  • One-pole lag filters on all continuous parameters for smooth, click-free adjustment
  • Supports mono › mono, mono › stereo, and stereo › stereo channel configurations

USER INTERFACE

  • Color-coded control elements
  • Consistent name, mapping, value, and unit implemented for all parameters in both graphic user interface and host control/automation
  • Sequencer pattern macro editing functions: copy, paste, reset, trim, invert, mirror, reverse, evolve, randomize, shift, loop
  • Built-in preset management functions
  • Open preset format for experimental pattern tweaking and generation
  • Supports window size scaling up to 200%

SUPPORTED FORMATS

  • Mac: AU/VST3/AAX for macOS 10.13 or newer (64-bit Apple Silicon and Intel)
  • Windows: VST3/AAX for Windows 8.1 or newer (64-bit Intel and AMD)
  • Linux: VST3 for Linux 2020 or newer (64-bit Intel and AMD)

If you previously bought Array, Array v2 or Array v3 spectral sequencer desktop plugin from us - the new Array v4 is a free upgrade for you. Please simply go to our updates page and request your download link.
