Node
Node four-operator FM synthesis
BUY NOW $39 ... READ THE MANUAL
Node is a four-operator FM synthesis engine for KORG prologue, minilogue xd and NTS-1. It is based on a classic setup with four sine oscillators (operators), which are connected together via multiple different algorithms that let them apply frequency modulation onto one another. This plugin neatly packages a total of 24 such FM algorithms and allows to set operator frequency ratios within an extremely wide range, delivering nearly 90,000 possible combinations – and opening a whole universe of timbres, from timeless classic to edgy modern. Node’s engine runs 2x oversampled and employs a special filter to suppress unpleasant aliasing frequencies, enabling a much cleaner sound even in the higher octave range. Node also includes a very flexible built-in modulation generator that can be configured in a number of ways: exponential or linear envelopes, multi-waveform LFO, sample & hold, or random triangle. With this many features, Node is arguably the most user-configurable plugin available for KORG’s platform – yet it’s designed to be incredibly easy to use.

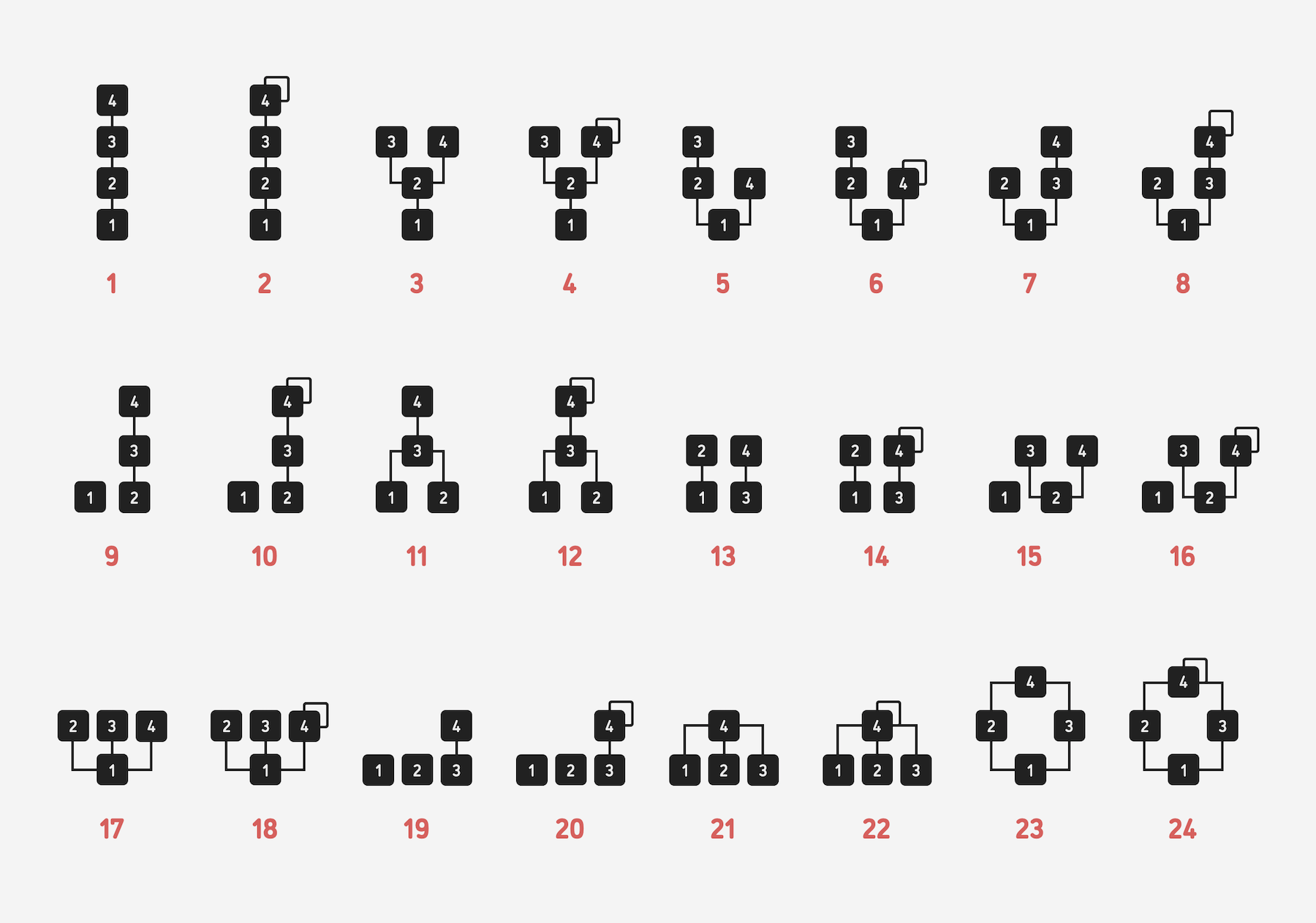

FM ALGORITHM CHART
HIGHLIGHTS
- Genuine four-operator FM synthesis engine
- Internally runs at 96 kHz sample rate with an anti-aliasing filter, delivering superior audio quality even in the higher octave key range
- 24 total FM algorithms: 12 base configurations plus two variations each – with and without self-modulating feedback
- Individual frequency ratio selection for operators 2, 3, and 4, plus variable operator detune
- Flexible modulation generator with 24 modes: exponential envelopes, linear envelopes, multi-waveform LFO (triangle, saw, square, pulse, trapezoid, peak), sample & hold, and random triangle
- Built-in lag filters for noise-free, ultra-smooth parameter adjustment and modulation
COMPATIBILITY
- KORG prologue
- KORG minilogue xd
- KORG NTS-1
PACKAGE CONTENTS
- Node plugin in prologue, minilogue xd and NTS-1 formats
- 60 example patches for prologue and minilogue xd, as well as for NTS-1 (in the form of preset tables)
- User Manual in PDF format
- Preset Tables in PDF format
- Multi Engine Preset Converter utility
